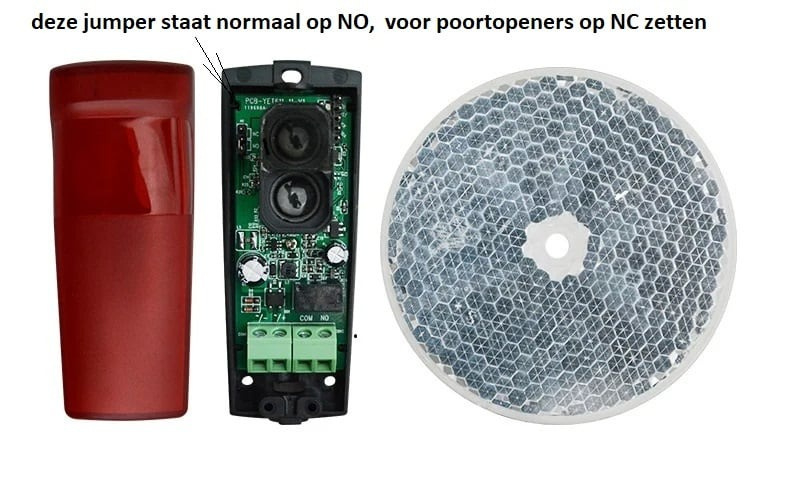

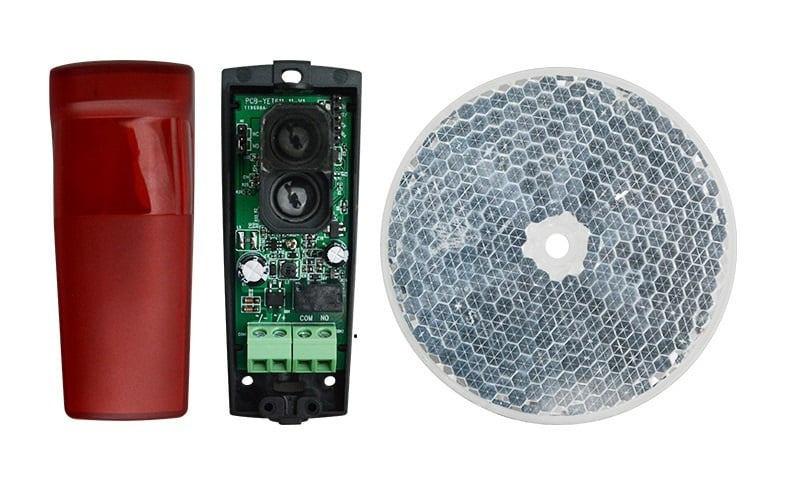

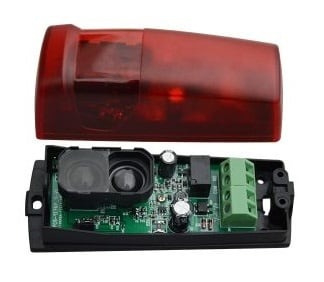

Kijzer K-611 IR Sensor met reflector en zonnekap, tot 12meter.Art. 4608 (QU)
Makkelijk te monteren infra rood sensor. de zender en ontvanger in 1 behuizing. daardoor behoeft u de oprit niet te openen. Bekabeling blijft aan 1 zijde. ideaal voor schuifpoorten.
Input voltage | AC: 9V~ 24V (AC Frequence: 45~60HZ, Imax =15mA) DC: 12V~24V (Imax =38mA) |
Working current | <38mA@12VDC (Relay on) <20mA@12VDC (Relay off) |
Sensing distance | 12m |
Receiver sensitivity | Fixed |
Reaction time | about 30mS |
Ambient light intensity | Max.5000lux |
Launch tube parameters | Wavelength:740nm Type of lightingļ¼Visible Red light |
Relay | Load parameterļ¼AC 0.5A/120VACļ¼DC: 1A/30VDC Coil parameterļ¼DC 9VDC ( Imax =20mA ) |
LED light indication | Green LED lightļ¼1) Power on/offļ¼2) The flashing light indicates that the signal is weak. Yellow LED lightļ¼ Working status Signal (On/Off: the working signal is valid/invalid.) |
Working temperature | -20ā ~ +70ā |
Storage temperature | -30ā ~ +80ā |
Size | 100 x 40 x 35mm |
Reflective plate | D82 x H8.3mm |
|
